Backfire Zealot S Belt Drive Electric Skateboard
- Deck: ABS+Glass fiber+maple Composite deck 990*240mm 39*9.5inch
- Truck: 8-inch 50-degree reverse kingpin Forged CNC
- Wheels: 96mm*55mm 80A
- Battery: 50.4V 346Wh, Samsung 40t (from June 2022)
- ESC: Hobbywing 12S 50A FOC
- Motors: 875W*2 Dual 5255 belt motors
- Remote: 2.4GHz Oled
- Weight: 8Kg /19.8lbs
- Max Load: 120kg/265lbs
- Top speed: 30mph / 48km/h
- Range: 30-40km / 19-24miles (80kg rider S mode 30km/h speed flat road)
- Water resistant: IP65
- Charging time: 2.5hours
ABS Glass Fiber
Compostie Deck
8inch Hot forging and CNC
precision machining Truck
21700 High Effciency
Battery Cells
96*55mm polyurethane
80A Durometer Wheels
Hobbywing
12S 50A FOC
875W*2 Dual
5255 belt motors
LED Ambient Light S
180 Days Warranty
50.4V High Effciency 21700 Battery
The structure of the Zealot battery still utilizes 12S2P, as used in the G3and G3 plus. This kind of battery is 50.4 volts, to explain, the higher thevoltage, the higher the effciency of an electric board.This board also uses 21700 4000mah battery cells. with a single batterycell discharge capacity of 30A. Because it is 2P, the entire batterycluster has a discharge capacity of 60A, which can keep the boardriding at high speeds or hill climbing endurance.
875W*2 Belt Drive Motors
The board also utilise a higher powered motor, upgraded from theoriginal 750W to 875w,increasing the torque by 16%.You can clearly see that the motor size of S is larger.
ABS Glass Fiber Composite Deck
The board deck is also upgraded from a bamboo glass fbercomposite board, to an ABS glass fber composite board deck,which will never break, despite it's amazing flexibility.
8 Inch Forged Truck
Gravity casting aluminium alloy
Pivot PU Bushing
SCM435 Kingpin
50° Kingpin Rakeon Baseplate
Rear truck Forged CNC Trucks front truck Gravity casting
SHR Bushings
Alloy steelcup washers
4340 Alloy steel Alxe

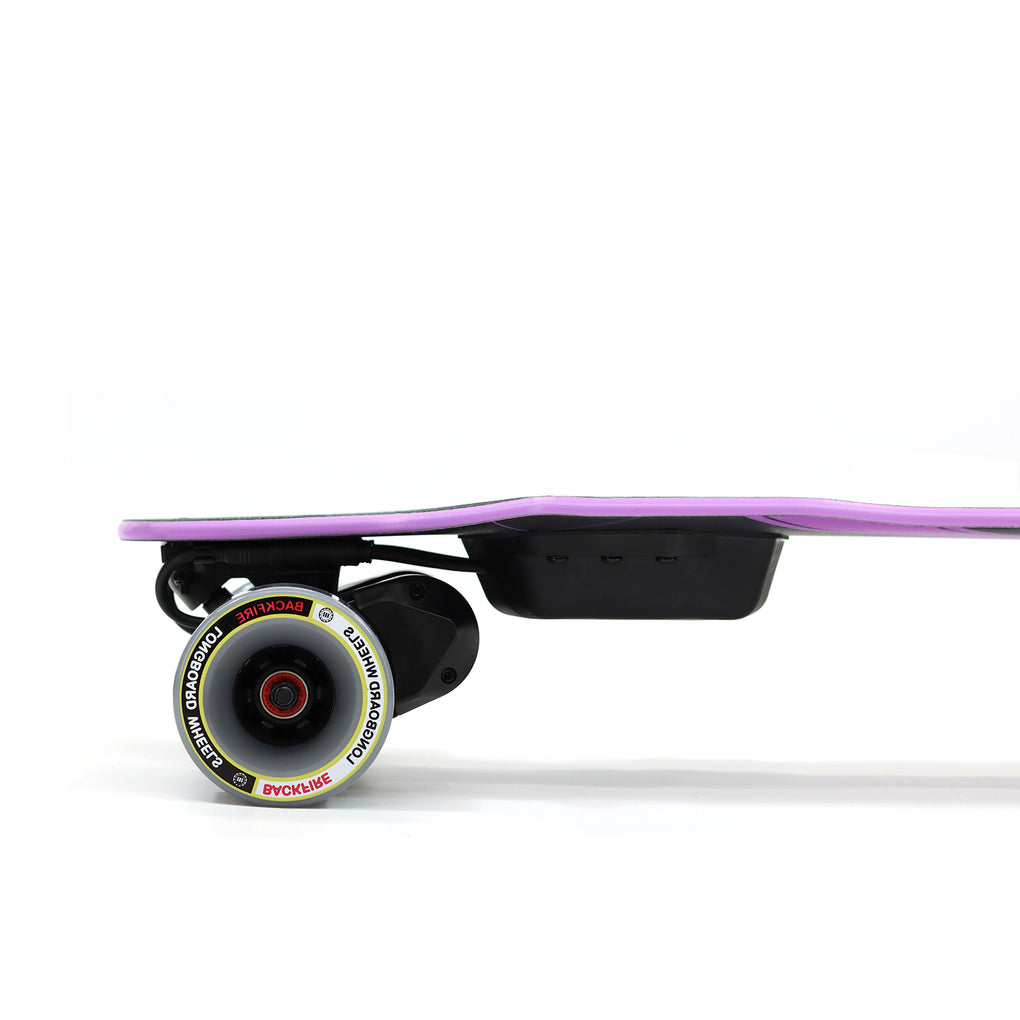

96mm Wheel /105mm Cloudwheels
96x55mm PU wheels(80A)
105mm cloudwheels
Need to be purchased separately
The 96 mm wheel is the classic size of a Skateboard, and itcan easily surmount most obstacles without lifting the boardtoo high off the ground. Can also be replaced with 105Cloudwheels(Need to be purchased separately)
